100kW Off-Grid System
FOB China Price: US$16,600.00～US$18,999.00
Fully Customizable to Fit Your Requirements！
| Power output | 62kWh |
|---|---|
| Drivable loads | within 100kW |
| Stored energy | 76.8kWh |
| Install area | Approx. 65 m² |

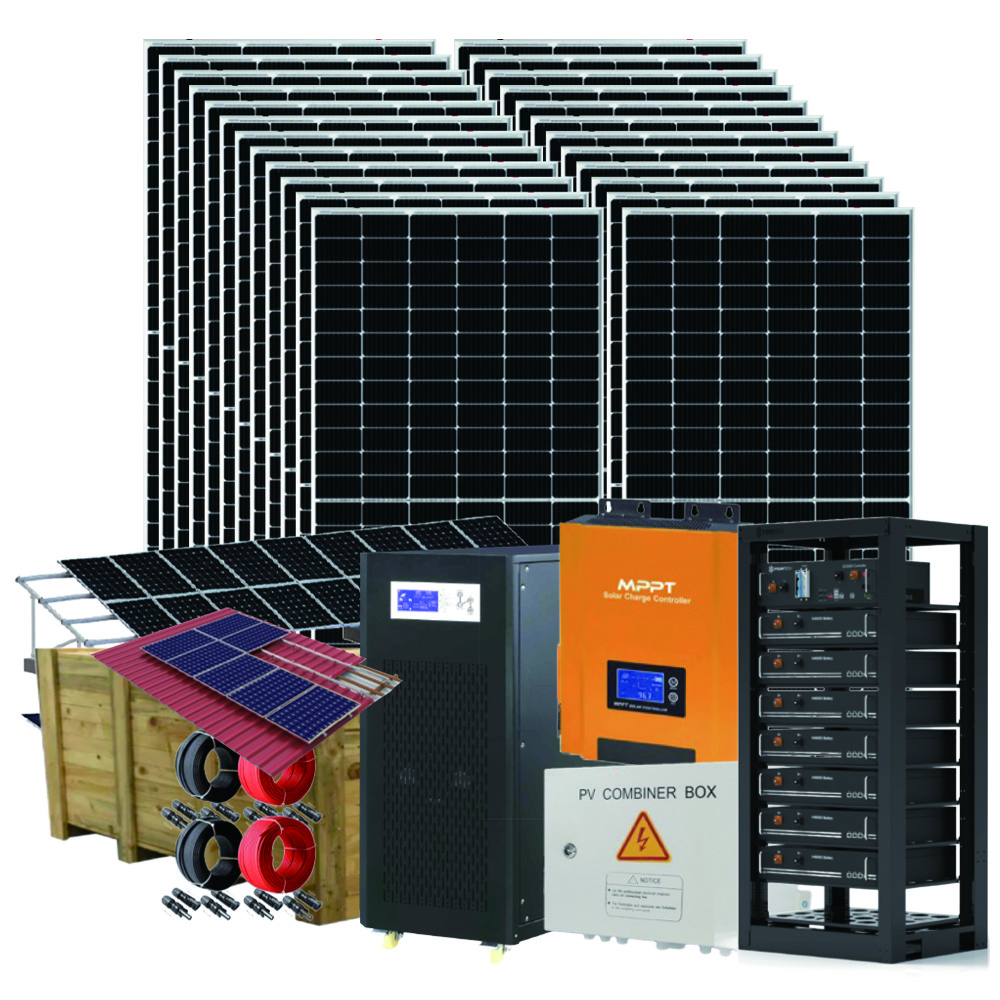

100kW Off-Grid System (76.8kWh)
Description
100kW Off-Grid System (76.8kWh)
| Picture | Description | Qty |
|---|---|---|
 |
Solar Panel – 580W Size: 2278×1134×35mm Weight: 28kg 12 years product warranty 25 years linear power warranty |
24 |
 |

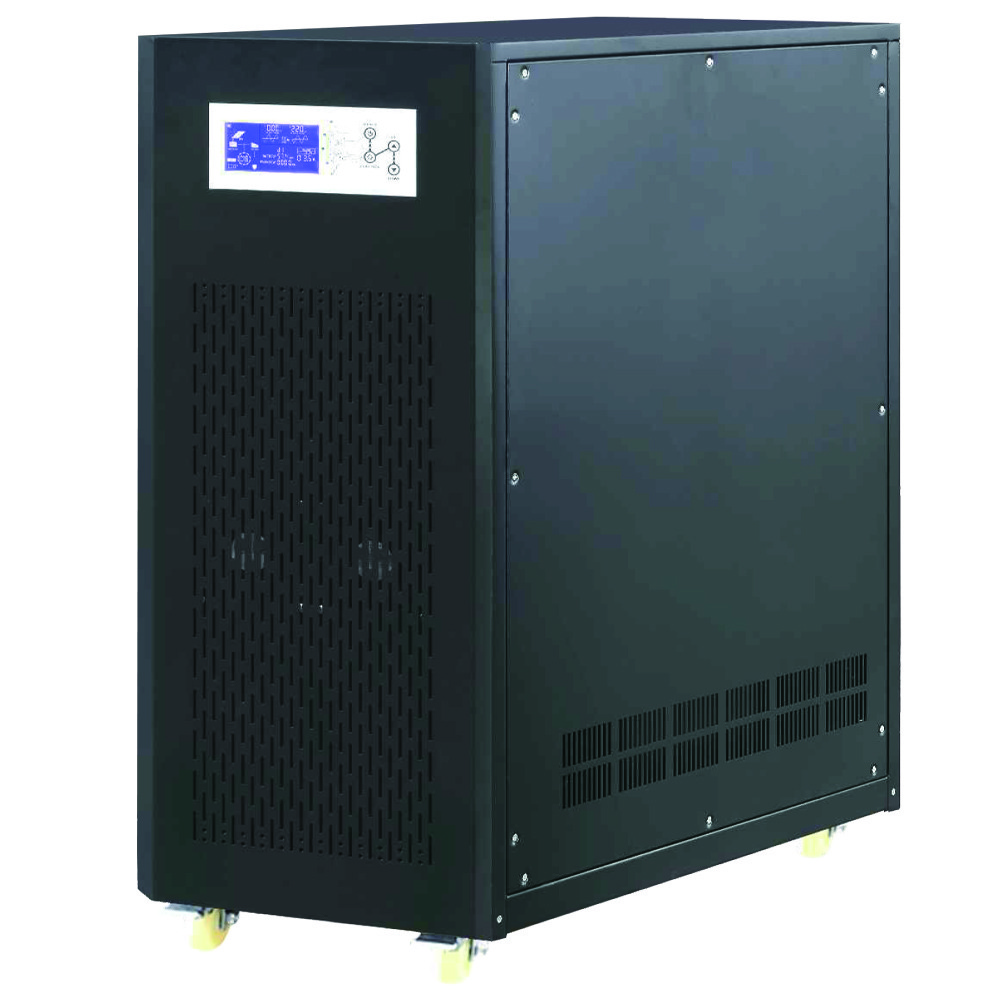

Off-grid Inverter Output Power: 100KVA/80kW 380/400V; 50/60Hz; 3 phase Battery voltage: 384VDC Waveform: Sine wave Start motor: 50HP Gross Size: 980*825*1560mm; G.W: 552kg Certificate: CE Warranty: 3 years |
1 |
 |
MPPT Controller 384V,100A Max Pv input voltage: 800V Working voltage rang: 400-640v PV Max Power: 44800W No of tracker: 2 Warranty: 3 years |
1 |
 |
Lithium Battery With Danger boxes, communication lines,BMS 384V 200Ah, A-Grade cells Cycle life: 5000-6000 times at DOD 80% Size:1060*680*2080 5-layer battery rack*2 Weight: 1020kg Warranty: 6 years |
1 |
 |
PV Combiner Box 2 input, 2 output |
1 |
 |
Aluminum Alloy Bracket Rooftop/Ground Mounting system Enough bracket for 24pcs panels (free design display) |
1 |
 |
Cable & Connecter 2roll (100m/roll, 4mm²) 100m red& 100m black MC4 plug * 12pcs |
1 |
 |
Panels Wooden Package Custom made |
1 |
Total System Cost
- FOB China Price: US$16,600.00～US$18,999.00
Contact Us
Contact us today to receive a custom quote and start your journey toward energy independence!
Contact us
Our YouTube channel
Related products
Frequently Asked Questions (FAQ)
1. How much solar power do I need?
Most homes need 5–12kW, depending on your energy use and location.
2. Off-grid vs. grid-tied — what's the difference?
Off-grid works without the utility grid; grid-tied lets you sell extra power back.
3. Do I need permits?
Usually yes — check local rules or ask us for guidance.
4. How long does a battery last?
Depends on size and load. A 5kWh battery can power a fridge for about 40 hours.
5. Can I upgrade my system later?
Yes, our systems are modular and easy to expand.
6. Does Maxbo offer installation?
We ship globally and connect customers with trusted local installers.
