100kW Solar System Off Grid (60kWh)

100kW Solar System Off Grid

FOB China Price: US$25,500.00~US$27,999.00
Fully Customizable to Fit Your Requirements!

Power output 344kWh
Drivable loads within 100kW
Stored energy 60kWh
Install area Approx. 457 m²

Description

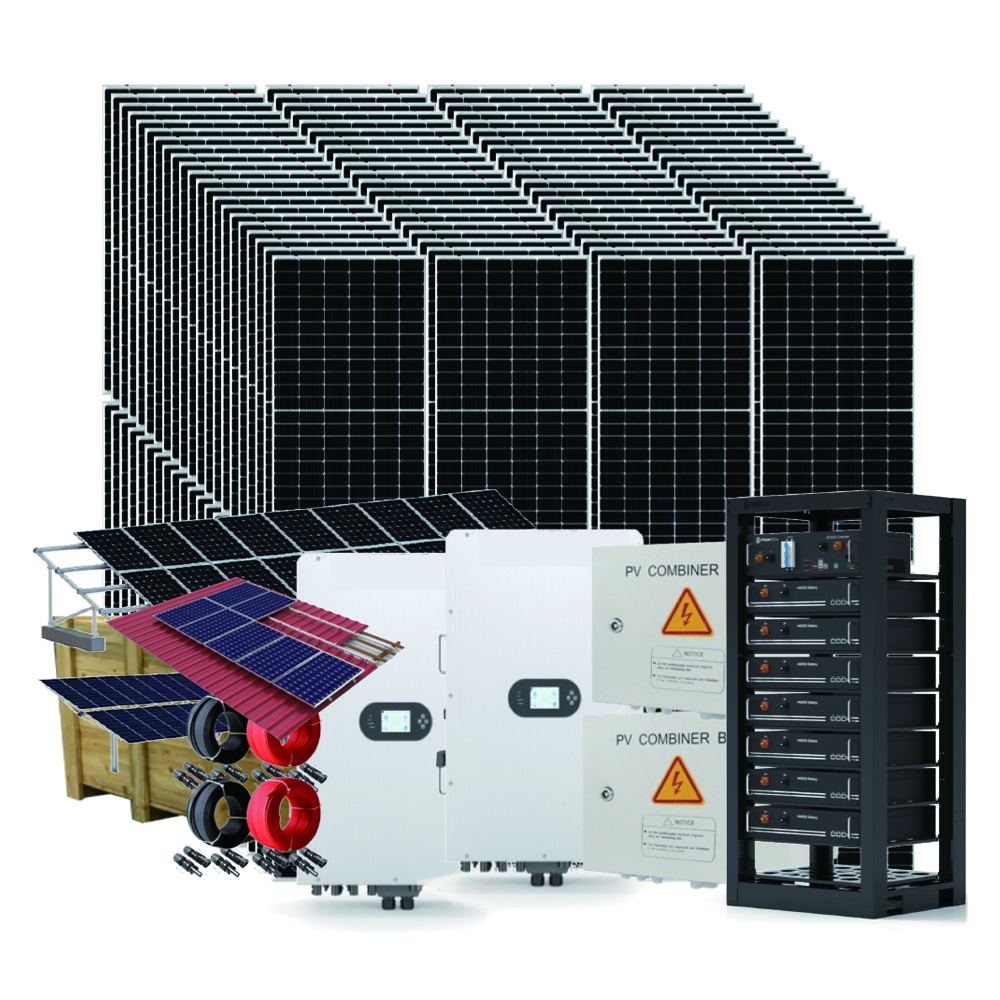

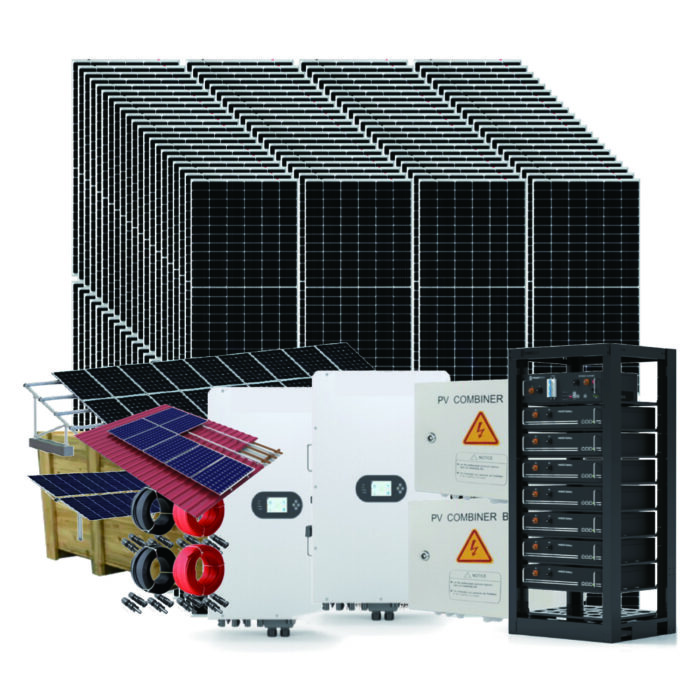

100kW Solar System Off Grid (60kWh Lithium Battery)

Picture Description Qty
550W solar panel

Solar Panel – 580W
Size: 2278×1134×30mm
Weight: 28kg
12 years product warranty
25 years linear power warranty

168

Hybrid Inverter – 50kW
Output Power: 50kW
Rated Voltage: 600V
Output Voltage: 220/380VAC, 3L/N/PE,50/60Hz
Battery voltage: 160-800V
MPPT Voltage Range: 150-850V
No. of MPPT Trackers: 4/2
Waveform: Pure Sine wave,
537W*833H*295.5Dmm, 82.5kg
Battery type: Lithium-ion
MPPT control function, warranty: 5 years

2
Lithium Battery
With Danger boxes, communication lines,BMS
288V 200Ah, A-Grade cells
Cycle life: 5000-6000 times at DOD 80%
Size:1550*695*2260mm
7-layer battery rack
Weight: 714kg
Warranty: 6 years
1
Control Box
6 input, 2 output
2
Aluminum Alloy Bracket
Grounding/Rooftop Mounting system
Enough bracket for 168pcs panels
(free design display)
1
Cable & Connecter
10roll (100m/roll, 4mm²)
MC4 plug * 80pcs
1
Panels Wooden Package
Custom made
1

Total System Cost

  • FOB China Price: US$25,500.00~US$27,999.00




Contact Us

Contact us today to receive a custom quote and start your journey toward energy independence!

Contact us
Our YouTube channel



* Please fill in as fully as possible so that we can provide a more accurate proposal.

Frequently Asked Questions (FAQ)

1. How much solar power do I need?
Most homes need 5–12kW, depending on your energy use and location.
2. Off-grid vs. grid-tied — what's the difference?
Off-grid works without the utility grid; grid-tied lets you sell extra power back.
3. Do I need permits?
Usually yes — check local rules or ask us for guidance.
4. How long does a battery last?
Depends on size and load. A 5kWh battery can power a fridge for about 40 hours.
5. Can I upgrade my system later?
Yes, our systems are modular and easy to expand.
6. Does Maxbo offer installation?
We ship globally and connect customers with trusted local installers.
